Danpoint HF

Raising the standards of software defined HF radios

Meet the Danpoint 2000 series - our latest addition to our high-end premium brand HF radio. Danpoint differs from the competition by being Danish Design and Made in Denmark. This implies top quality, nice looks, pleasant touch and high usability and user friendliness as well as great attention to detail and advanced engineering.
We believe in Danpoint. Thus we back it by a 3 year warranty period, extendable to 5 years.

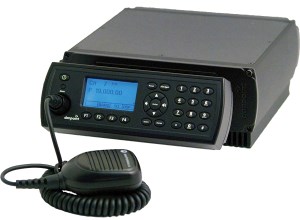

Danimex HF 2000 Series

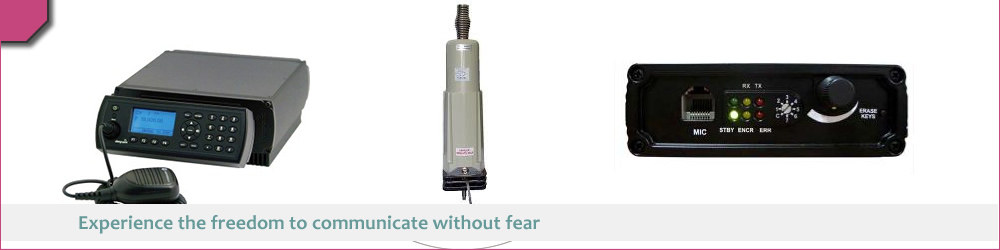

In stationary use, the control-head is placed in an adjustable cradle on the radio. The same units are used in mobile use, connected, in this case, by a longer cable. The keys are strong, arranged logically and placed well protected on the control-head rather than in the microphone to secure ruggedness and low cost of maintenance. A standard microphone equipped with a MOTOTRBO standard plug is used, and can be easily replaced.
Although producing a true 125 watts of output power, the heat is controlled without use of mechanical fans - resulting in less noise and lowered maintanance costs. Serviceability is a priority. Software updates can be installed from a PC via USB.  Cables and microphone connectors are over-sized. Housing is solid aluminum. Nothing is left to chance.

These are some of the reasons why we proudly offer a full 3 year warranty period.

Main specifications

• Frequency range: 1.6 to 30 MHz
• Frequency stability: 0,6 ppm
• Transmit power: 125 Watts PEP
• Frequency resolution: 10 Hz
• Operating temperature range from: -30° to +60°C
• Storage temperature range from: -40° to +85°C
• Humidity up to: 95% @ 50°C
• Operating voltage: 13.8 vdc ±20%, negative ground
• ALE per MIL STD 188-141B
• CCIR 493 à 4 & 6 digits selcall per interoperability agreements
• Upgradable to: 10 digits standard
• Supports: Beacon call & GPS call
• Size and weight: WxHxD mm
  • Base radio: 225x92x244.5; 4 Kgs
  • Mobile radio: 225x92x239; 4 Kgs
  • Mobile control panel: 188x72x61.8; 0.5 Kgs
